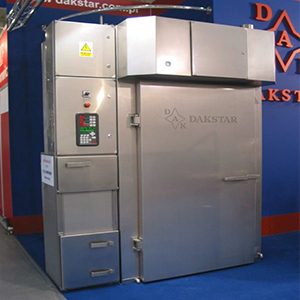

MACHINE :- Somke House
CHRACTERISTICS :
- Silicone gasket
- Strong hinges made of stainless steel
- High quality
- Unfolded driveway for trolleys
- Humidity control system
- Temperature control system
- Guide for trolleys
- Cover the heating elements
- Good air circulation
| SPECIFICATIONS |
|
|
|
| MOD |
KWP-1/E |
KWP-2/E
|
|
|
|
| Max. temporary thermal power demand |
27,0 kW |
54 kW |
|
|
|
| Max. electrical power demand |
31,0 kW |
60,5 kW |
|
|
|
| Smoke generator heater power |
0,8 kW |
0,8 kW |
|
|
|
| Chamber’s weight |
970 kg |
1770 kg |
|
|
|
| Smoke generator’s weight |
180 kg |
180 kg |
|
|
|
| Heaters 1500 W |
18 pieces |
18 pieces |
|
|
|
| Chamber’s height |
3030 mm |
3030 mm |
|
|
|
| Chamber’s width |
1475 mm |
1475 mm |
|
|
|
| Chamber’s length |
1270 mm |
2340 mm |
|
|
|
| Smokegenerator’s height |
1380 mm |
1380 mm |
|
|
|
| Smokegenerator’s width |
500 mm |
500 mm |
|
|
|
| Smokegenerator’s length |
520 mm |
520 mm |
|
|
|
|
|
|
|
|
| |
|
|
|
